Rated Power Output

7 W

Nominal Input Level

INPUT: -10 dBu (1 M ohm)
AUX IN: -10 dBu (20 k ohm)

Speaker

10 cm (4 inches)

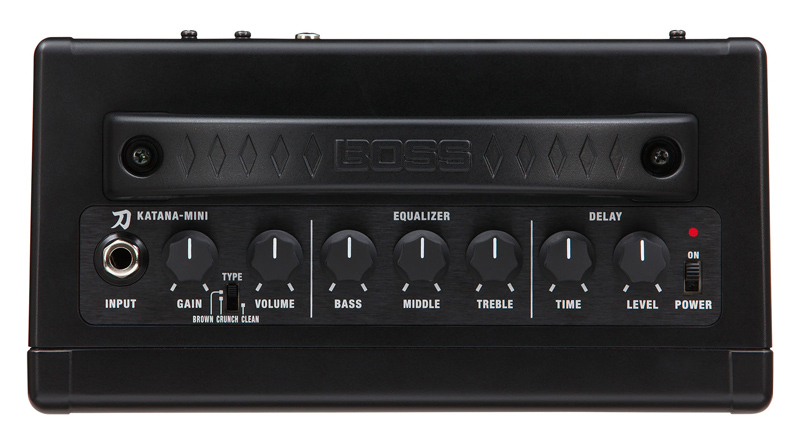

Controls

POWER switch
TYPE switch

GAIN knob

VOLUME knob

[EQUALIZER]
BASS knob
MIDDLE knob
TREBLE knob

[DELAY]
TIME knob
LEVEL knob

Indicators

POWER

Connectors

INPUT jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
PHONES/REC OUT jack: Stereo miniature phone type

DC IN jack

Power Supply

Alkaline battery (AA, LR6) x 6
Rechargeable Ni-MH battery (AA, HR6) x 6
or
AC adaptor (sold separately)

Current Draw

350 mA

Expected battery life under continuous use

Alkaline battery: Approximately 7 hours
Rechargeable Ni-MH battery: Approximately 9 hours (When using batteries having a capacity of 2500 mAh.)
* This can vary depending on the capacity of the batteries and the conditions of use.

Accessories

Owner's manual
Alkaline battery (AA, LR6) x 6

Option (sold separately)

AC adaptor (PSB series)

Size and Weight

Width

230 mm
9-1/16 inches

Depth

116 mm
4-5/8 inches

Height

181 mm
7-1/8 inches

Weight (including battery)

1.2 kg
2 lbs 11 oz

* 0 dBu = 0.775 Vrms
